EVO frame series

convertible design
improved adjustments
full stacking compatibility with previous models
built in galvanic insulation
DGUV V17 / V18 verified

EVO frame series

Q: How much do the EVO Frame for projectors cost?

EVO frames are available in a lot of different models. Please contact us to get your quote.

Q: Where can I find the manual for my frame?

You can finde the manuals in the download area .

Q: Where and how can I purchase the product in my country (DE, EU, Asia, GB, USA, CANADA, others)?

As a manufacturer, we only work with resellers. So, if you are not an end customer, you are welcome to buy from us. In some countries we have distributors who can support you locally. If you are an end customer, we would be happy to recommend partners in your area who can provide you with the best possible support. Please contact us for this purpose.

Q: Can the FRAME-EVO-P30 be used with an ultra-short throw lens?

Yes, one of the major selling points of the EVO frame is the cabrio function*. The upper ring of the frame can be easily and without tools be removed so that the usage of a ultra-short lens can happen without any inconvenience. *except the EVO-P31H frame especially made for stackings and heavy duty weight.

Q: What are typical use cases for the EVO frames?

The most typical use cases are large projections, portrait applications and on-floor projections.

Q: For which mountings are the cages suitable? Ceiling, wall, others?

The frames are usually attached to trusses, with EVO-LINK s . A wide range of accessories (portrait adapter, safety kit, etc.) is also available.

Q: Are the EVO frames certified?

The EVO frames and EVO-LINKs are verified by DGUV V17/ V18 (accident prevention regulation of the event and production facilities for scenic representation). Additionally, the frames are approved by the TÜV and have obtained the CE-Certification . More about certifications

The newest frame generation is the EVOlution of the earlier, very well-known frame series. The system has been redesigned from scratch. The result is a very similar look with some major advantages.

With nearly the same outer dimensions, it is fully stacking compatible with the previous generation.
The convertible design enables the easy removal of the upper part for an unrestricted use of ultra-short lenses. For this process, no additional tools are required, and no lose parts that might get lost are left behind. The galvanic insulation from the projector housing to the trussing is built-in. Due to this, there is no need for additional plastic washers to avoid electrical problems. This simplifies a lot mounting the projector into the frame. Furthermore, adjusting the projector in the frame is more precise with less unwanted play.

Of course, the EVO frame series is DGUV V17 / V18 verified as well as fully calculated in a static analysis.

Details

Broadcast

Corporate

Event

Museum

Sports

Trade show

Find the right Frame for your Projector

Select your projector manufacturer and model: the Frame Finder instantly identifies the correct projector frame, including compatible EVO-LINKs and accessories for your setup.

Open the Frame Finder

Frame Finder

Finding compatible frames for your projector was never that easy. Just choose the brand and model and click on search results.

Matching Evo Frame(s)

Matching Evo-Link(s)

{{feature.title}}

Select

Matching Accessorie(s)

Open product page

Select

Accessories

EVO-LINK series

The new EVO-LINK product line completes the EVOlution of projector hanging accessories for truss installations.

Accessories for projector frames

In addition to the well known EVO frames, the right accessories enable the effective and safe installation of projectors.

Silencer for Projectors

Powerful projectors naturally have a high noise level. With the Silencer Box from EXACT solutions, the volume can be reduced by a considerable number of decibel levels.

Key features

Made in Germany

AV Armour

CE

DGUV V17/18

Easy adjustment

Lightweight

Modular design

Rental proof

Robust

Static calculations

Models in detail

Use the Frame Finder so see the perfect EVO frame for your projector in seconds. Select your brand and model to see all compatible options instantly.

Panasonic

EVO Frame - P10

EVO FRAME - P10
Alternative Model Number [Panasonic]	ET-RFD40 [EU-Version] ET-PFD365 [US-Version]
Compatible Projectors [Panasonic]	PT-REQ15 \| PT-REQ12 \| PT-REQ10 \| PT-REQ80 \| PT-RZ990 \| PT-RZ890 \| PT-RZ790 \| PT-RZ690 \| PT-DZ13 \| PT-RZ660 \| PT-RZ770 \| PT-RZ870 \| PT-RZ970 \| PT-RZ120
Dimensions [W x H x D]	652 x 353.5 x 683 mm [25.67 x 139.17 x 26.89 inch]
Weight	13.4 kg [29.54 lbs]
*Maximum projector weight¹**	35 kg [77.16 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*³

Visual Details

EVO Frame - P11

EVO FRAME - P11
Alternative Model Number [Panasonic]	ET-RFD41 [EU-Version] ET-PFD366 [US-Version]
Compatible Projectors [Panasonic]	[optimised for REQ12/15 Series] PT-REQ15 \| PT-REQ12 \| PT-REQ10 \| PT-REQ80 \| PT-REZ15 \| PT-REZ12 \| PT-REZ10 \| PT-REZ80 \| PT-RZ990 \| PT-RZ890 \| PT-RZ790 \| PT-RZ690 \| PT-DZ13 \|PT-RZ660 \|PT-RZ770 \| PT-RZ870 \| PT-RZ970 \| PT-RZ120
Dimensions [W x H x D]	652 x 394 x 683 mm [25.67 x 15.51 x 26.89 inch]
Weight	13.5 kg [29.76 lbs]
*Maximum projector weight¹**	35 kg [77.16 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*³

Visual Details

EVO Frame - P14

EVO FRAME - P14
Alternative Model Number [Panasonic]	ET-RFD50 [EU-Version] ET-PFD465 [US-Version]
Compatible Projectors [Panasonic]	PT-MZ11KL \| PT-MZ14KL \| PT-MZ17KL \| PT-MZ20KL \| PT-MZ680 \| PT-MZ780 \| PT-MZ880 \| PT-MZ682 \| PT-MZ782 \| PT-MZ882
Dimensions [W x H x D]	783 x 373 x 678 mm [30.83 x 14.69 x 26.69 inch]
Weight	15.2 kg [33.51 lbs]
*Maximum projector weight¹**	35 kg [77.16 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*³

Visual Details

EVO Frame - P17

EVO FRAME - P17
Alternative Model Number [Panasonic]	ET-RFD65 [EU-Version] ET-PFD525 [US-Version]
Compatible Projectors [Panasonic]	PT-RQ25K \| PT-RQ18K \| PT-RZ24K \| PT-RZ17K \| PT-RZ14K
Dimensions [W x H x D]	722 x 398 x 778 mm [28.43 x 15.67 x 30.63 inch]
Weight	15.5 kg [34.17 lbs]
*Maximum projector weight¹**	50 kg [110.23 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*³

Visual Details

EVO Frame - P20

EVO Frame - P20
Alternative Model Number [Panasonic]	ET-RFD60 [EU-Version] ET-PFD565 [US-Version]
Compatible Projectors [Panasonic]	PT-RZ12 \| PT-RZ21 \| PT-RS20 \| PT-RQ22
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weight¹**	70 kg [154.32 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*³

Visual Details

EVO Frame - P30

EVO Frame - P30
Alternative Model Number [Panasonic]	ET-RFD70 [EU-Version] ET-PFD765 [US-Version]
Compatible Projectors [Panasonic]	PT-RQ35K \| PT-RZ34K
Dimensions [W x H x D]	757 x 540 x 883 mm [29.80 x 21.26 x 34.76 inch]
Weight	20.5 kg [45.20 lbs]
*Maximum projector weight¹**	78 kg [171.96 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD-XL*³

Visual Details

EVO Frame - P32H

EVO Frame - P32H
Alternative Model Number [Panasonic]	ET-RFD72H [EU-Version] ET-PFD766H [US-Version]
Compatible Projectors [Panasonic]	PT-RQ45K \| PT-RQ35K \| PT-RZ34K
Dimensions [W x H x D]	757.1 x 540 x 893.5 mm [29.8 x 21.3 x 35.2 inch]
Weight	21.5 kg [47.40 lbs]
*Maximum projector weight¹**	79 kg [174.17 lbs]
Removable front pipe
*Orientation²**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-350 \| PF-UNI-CLP5040 \| PF-UNI-CLP40PT \| PF-UNI-PORAD-XL40*³

Visual Details

Notes
¹ incl. lens* ² depending on the installation there might be additional accessories necessary* ³ depending on installed lens*

Epson

EVO Frame - E10

EVO Frame - E10
Alternative Model Number [Epson]	ELPMB59
Compatible Projectors [Epson]	EB-L1000 series \| EB-PU2113 \| EB-PU2213 \| EB-PU2116 \| EB-PU2216 \| EB-PU2120 \| EB-PU2220 \| EB-PQ2213 \| EB-PQ2216 \| EB-PQ2220 \| EB-PU1006 \| EB-PU1007 \| EB-PU1008 \| EB-PU2010 \| EB-PQ2008 \| EB-PQ2010
Dimensions [W x H x D]	722 x 354 x 642 mm [28.43 x 13.94 x 25.28 inch]
Weight	13.5 kg [28.76 lbs]
*Maximum projector weight¹**	35 kg [77.16 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical Down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*³

Visual Details

EVO Frame - E20

EVO Frame - E20
Alternative Model Number [Epson]	ELPMB57
Compatible Projectors [Epson]	EB-L20000U \| EB-L 12000Q
Dimensions [W x H x D]	750 x 485 x 883 mm [29.53 x 19.09 x 34.76 lbs]
Weight	16.4 kg [36.16 lbs]
*Maximum projector weight¹**	70 kg [154.32 lbs]
*Orientation²**	Landscape \| Portrait \| Vertical Down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*³

Visual Details

Notes
¹ incl. lens* ² depending on the installation there might be additional accessories necessary* ³ depending on installed lens*

Barco

EVO Frame - P11 BE

EVO Frame - P11 BE
For Barco	I600
Dimensions [W x H x D]	652 x 394 x 683 mm [25.67 x 15.51 x 26.89 inch]
Weight	13.5 kg [29.76 lbs]
*Maximum projector weight²**	35 kg [77.16 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical Down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Visual details

EVO Frame - B20

EVO Frame - B20
For Barco	G100 series
Dimensions [W x H x D]	781 x 435 x 883 mm [30.75 x 17.13 x 34.76 inch]
Weight	17 kg [37.48 lbs]
*Maximum projector weight²**	65 kg [143.30 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical Down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Visual details

EVO Frame - P10

EVO FRAME - P10
For Barco	Barco G60 W*¹
Dimensions [W x H x D]	652 x 353.5 x 683 mm [25.67 x 139.17 x 26.89 inch]
Weight	13.4 kg [29.54 lbs]
*Maximum projector weight²**	35 kg [77.16 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

EVO Frame - P20

EVO Frame - P20
For Barco	Barco F70-4K8*¹
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weight²**	70 kg [154.32 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Notes
¹ with special designed base plate* ² incl. lens* ³ depending on the installation there might be additional accessories necessary* ⁴ depending on installed lens*

Christie

EVO Frame - C20

EVO FRAME - C20
For Christie	M 4K15 RGB \| M 4K+15 RGB \| M 4K25 RGB \| M 4K+25 RGB
Dimensions [W x H x D]	751 x 435 x 883 mm [29.6 x 17.1 x 34.8 inch]
Weight	18.0 kg [39.7 lbs]
*Maximum projector weight²**	60 kg [132.3 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

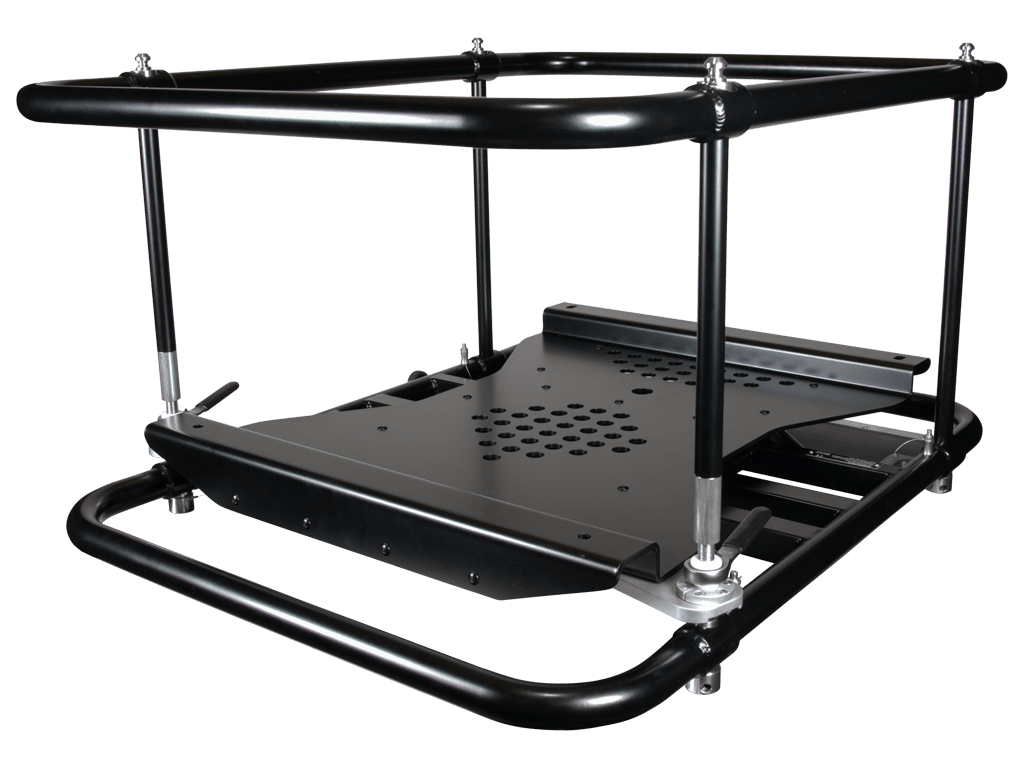

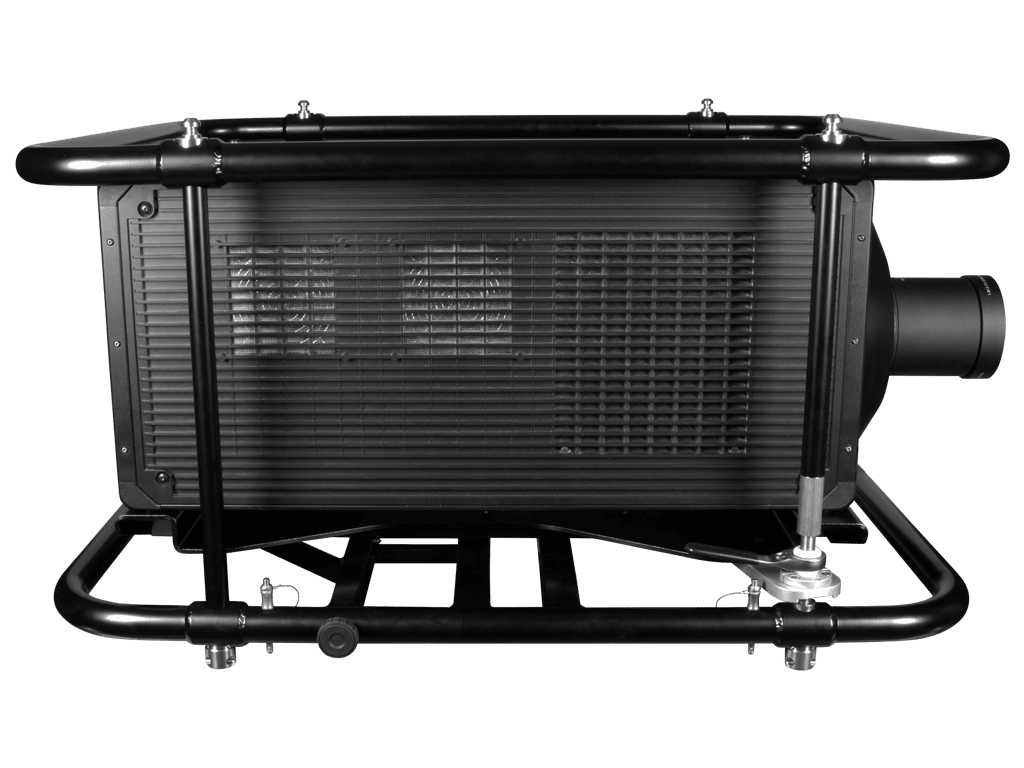

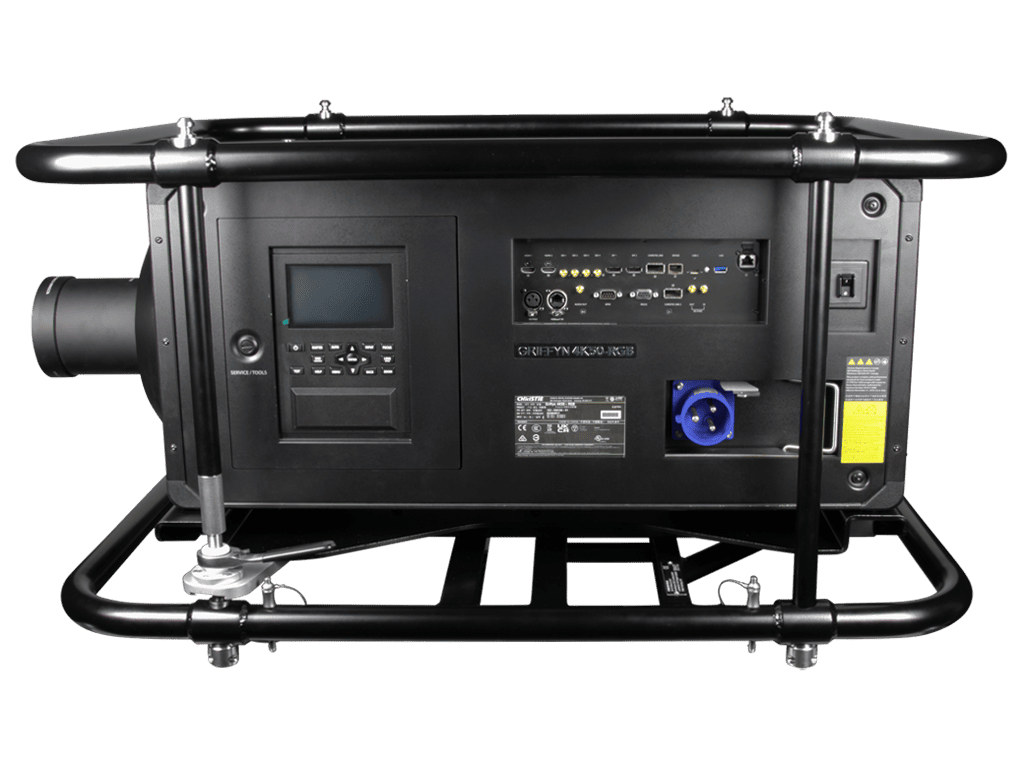

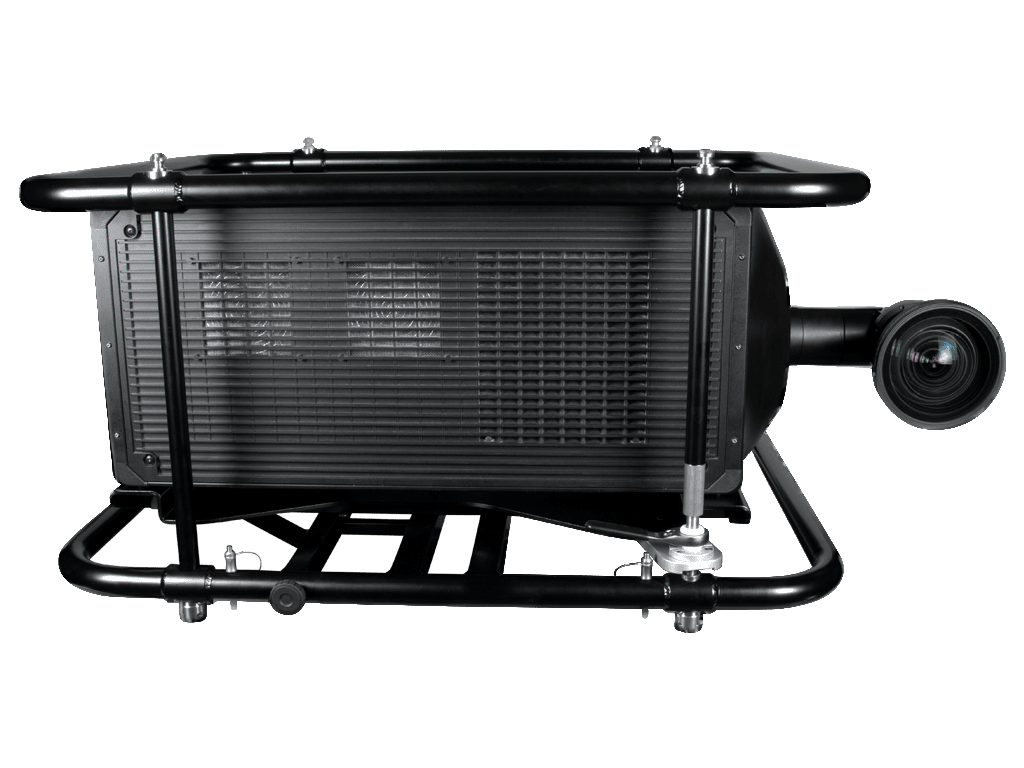

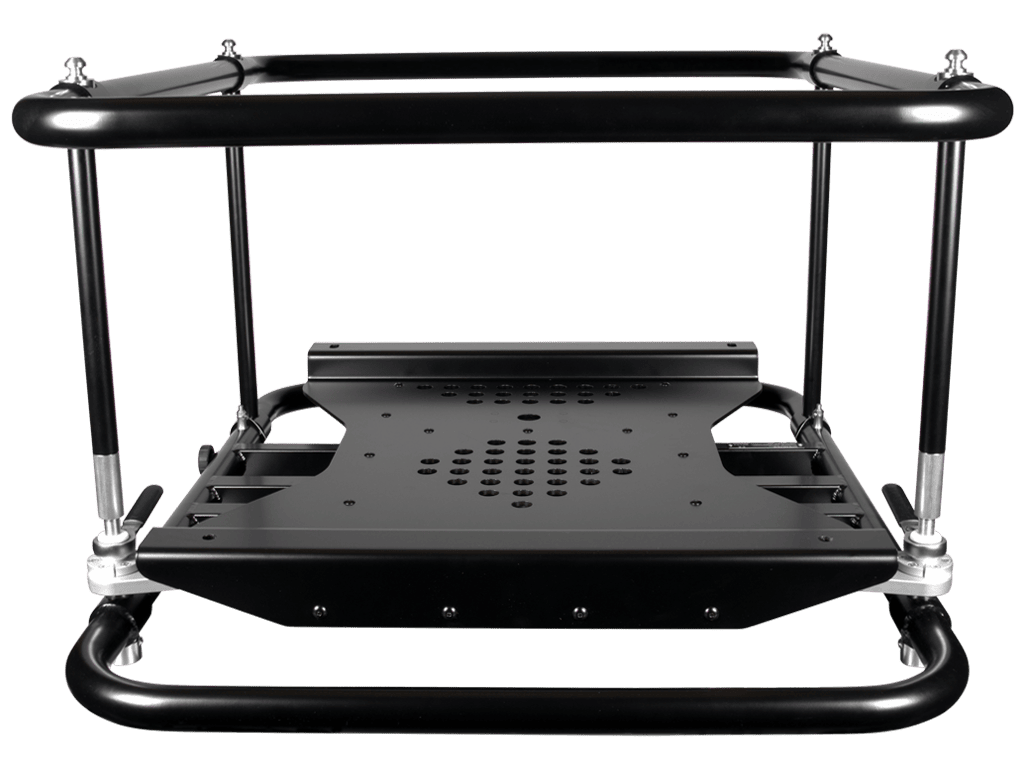

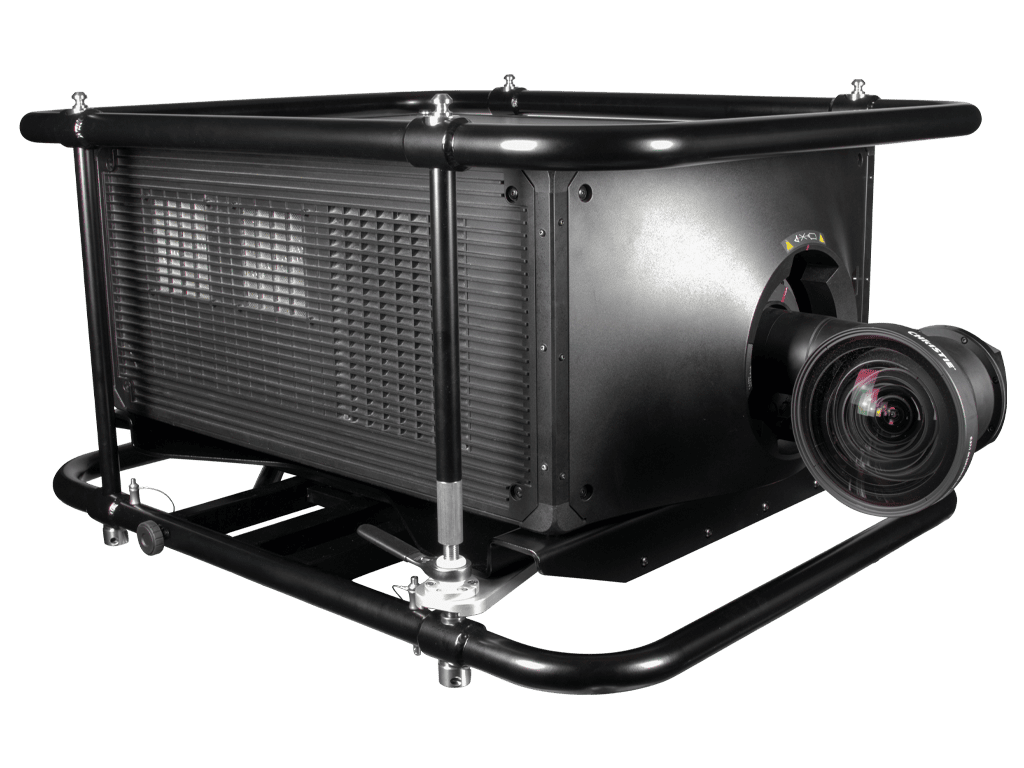

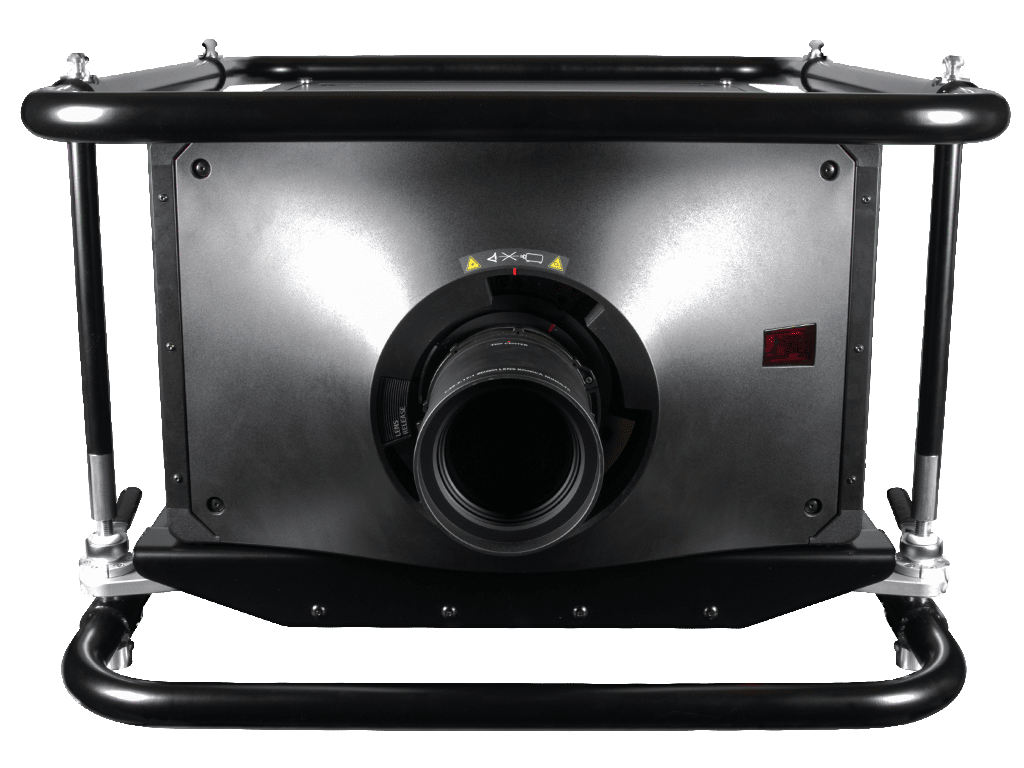

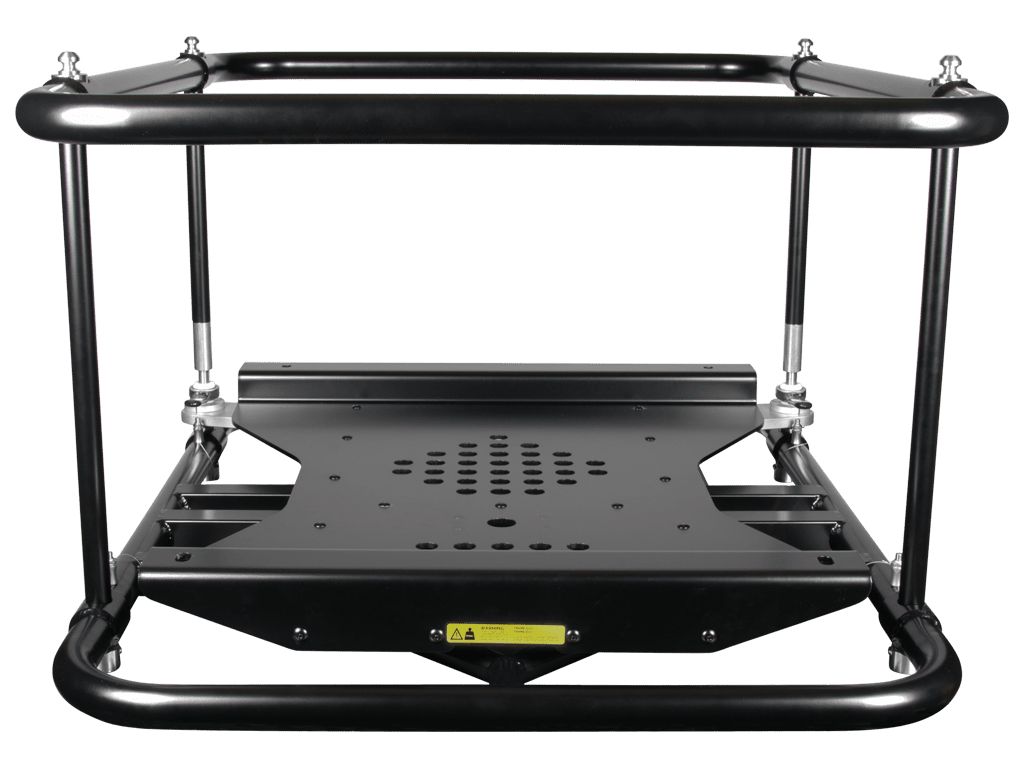

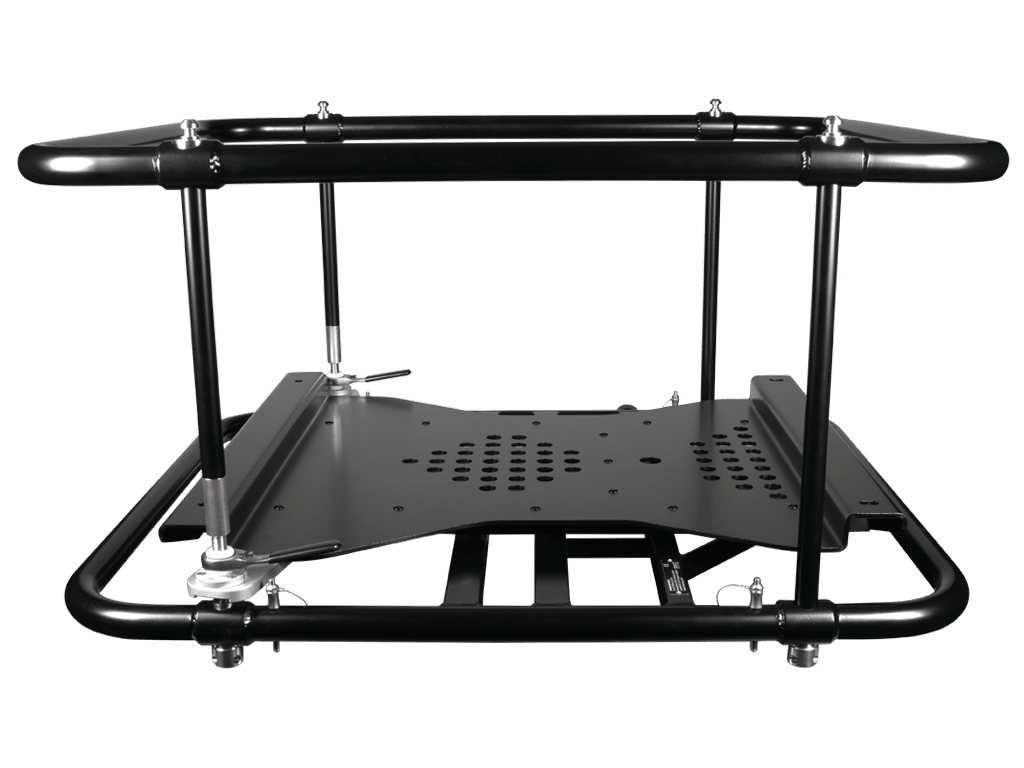

EVO Frame - C40H

EVO FRAME - C40H
For Christie	Griffyn 4K35-RGB \| Griffyn 4K50-RGB \| Sapphire 4K40-RGB
Dimensions [W x H x D]	860 x 590 x 1065 mm [33.9 x 23.2 x 41.93 inch]
Weight	35.0 kg [77.16 lbs]
*Maximum projector weight²**	110 kg [242.5 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-350 \| PF-UNI-CLP5040 \| PF-UNI-CLP40PT

EVO Frame - P17

EVO FRAME - P17
For Christie	4K1600-JS¹ \| 4K2100-JS¹ \| DWU1800-JS¹ \| DWU2400-JS¹
Dimensions [W x H x D]	722 x 398 x 778 mm [28.43 x 15.67 x 30.63 inch]
Weight	15.5 kg [34.17 lbs]
*Maximum projector weight²**	50 kg [110.23 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

EVO Frame - P10

EVO FRAME - P10
For Christie	DWU599-GS¹ \| LWU720i-D¹
Dimensions [W x H x D]	652 x 353.5 x 683 mm [25.67 x 139.17 x 26.89 inch]
Weight	13.4 kg [29.54 lbs]
*Maximum projector weight²**	35 kg [77.16 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

EVO Frame - P20

EVO FRAME - P20
For Christie	D16WU-HS¹ \| D16HD-HS¹ \| D20HD-HS¹ \| D20HD-HS¹ \| 4K7-HS¹ \| 4K10-HS¹ \| D13WU-HS¹ \| HD10K-M¹
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weigh²**	70 kg [154.32 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Notes
¹ with special designed base plate* ² incl. lens* ³ depending on the installation there might be additional accessories necessary* ⁴ depending on installed lens*

NEC

EVO Frame - P10

EVO FRAME - P10
For NEC	P605UL¹ \| PA703UL¹ \| PA653UL*¹
Dimensions [W x H x D]	652 x 353.5 x 683 mm [25.67 x 139.17 x 26.89 inch]
Weight	13.4 kg [29.54 lbs]
*Maximum projector weight²**	35 kg [77.16 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

EVO Frame - P14

EVO FRAME - P14
For NEC	PA1004UL¹ \| PA1705UL¹
Dimensions [W x H x D]	783 x 373 x 678 mm [30.83 x 14.69 x 26.69 inch]
Weight	15.2 kg [33.51 lbs]
*Maximum projector weight²**	35 kg [77.16 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

EVO Frame - P17

EVO FRAME - P17
For NEC	PX803UL¹ \| PX1005QL¹ \| PX1004UL*¹
Dimensions [W x H x D]	722 x 398 x 778 mm [28.43 x 15.67 x 30.63 inch]
Weight	15.5 kg [34.17 lbs]
*Maximum projector weight²**	50 kg [110.23 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

EVO Frame - P20

EVO Frame - P20
For NEC	PX2000UL*¹
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weight²**	70 kg [154.32 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Notes
¹ with special designed base plate* ² incl. lens* ³ depending on the installation there might be additional accessories necessary* ⁴ depending on installed lens*

Digital P.

Digital Projection

EVO Frame - P20

EVO FRAME - P20
For Digital Projection	M-Vision Laser 18K¹ \| M-Vision Laser 21K¹ \| E-Vision Laser 10K¹ \| HIGHlite Laser II 3D¹
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weigh²**	70 kg [154.32 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Notes
¹ with special designed base plate* ² incl. lens* ³ depending on the installation there might be additional accessories necessary* ⁴ depending on installed lens*

Optoma

EVO Frame - P20

EVO FRAME - P20
For Optoma	WU1500*¹
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weigh²**	70 kg [154.32 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Notes
¹ with special designed base plate* ² incl. lens* ³ depending on the installation there might be additional accessories necessary* ⁴ depending on installed lens*

Sony

EVO Frame - P20

EVO FRAME - P20
For Sony	VPL-FHZ90L*¹
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weight²**	70 kg [154.32 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Notes
¹ with special designed base plate* ² incl. lens* ³ depending on the installation there might be additional accessories necessary* ⁴ depending on installed lens*

Vivitek

EVO Frame - P20

EVO FRAME - P20
For Vivitek	DU9800Z*¹
Dimensions [W x H x D]	750 x 435 x 883 mm [29.53 x 17.13 x 34.76 inch]
Weight	16 kg [35.27 lbs]
*Maximum projector weigh²**	70 kg [154.32 lbs]
*Orientation³**	Landscape \| Portrait \| Vertical down
Accessories	EVO-LINK-200 Series \| PF-UNI-CLP5030 \| PF-UNI-CLP30PT \| PF-UNI-PORAD*⁴

Notes
¹ with special designed base plate* ² incl. lens* ³ depending on the installation there might be additional accessories necessary* ⁴ depending on installed lens*
