Accessories for projector frames
- flexible and perfectly matched
- robust, safe and stable
- complying with DGUV V17 (BGV C1) regulation
Accessories for projector frames
To cover all installation possibilities of the well known EVO frame series, the right accessories for projector frames enable the effective and safe installation.
All products are robust, stable and match perfectly with one another.
Broadcast
Corporate
Event
Museum
Sports
Trade show
Key features
Made in Germany
AV Armour
CE
DGUV V17/18
Easy adjustment
Lightweight
Rental Proof
Robust
Static
Models in detail
Find the suitable projector frame accessorie for your application below. If you need further information, please check the FAQ or contact us.
Portrait Adapter
Portrait Adapter
With our Portrait Adapter PF-UNI-PORAD and PF-UNI-PORAD-L it‘s very simple to turn your projector from landscape into portrait or face down orientation. Just mount the Portrait Adapter to your projector frame with the rigging clamps and use for example an EVO-LINK-200 to mount it onto a truss.
Specifications
Visual Details

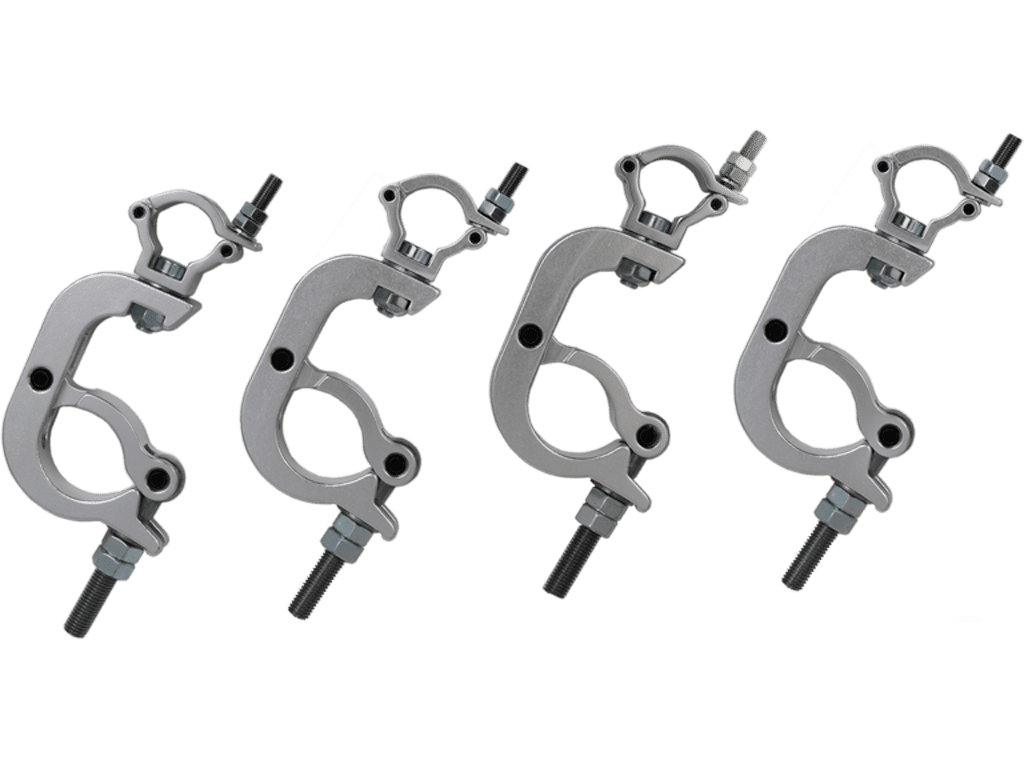

Clamp for truss mount
Clamp for truss mount
With the double clamp adapter FRAME-PF-UNI-CLP50xx or FRAME-PF-UNI-CLP-60xx you can easily hang your frame on a truss. The 30 or 40 mm clamps have to be mounted at the EVO frame and the other clamps, with a diameter of 50 mm or 60mm, can be fixed on a truss.
The set is suitable for the EVO frame series and all other projector frames that are made from 30 or 40 mm pipes. Each set containes four double clamps.
Specifications
Visual Details

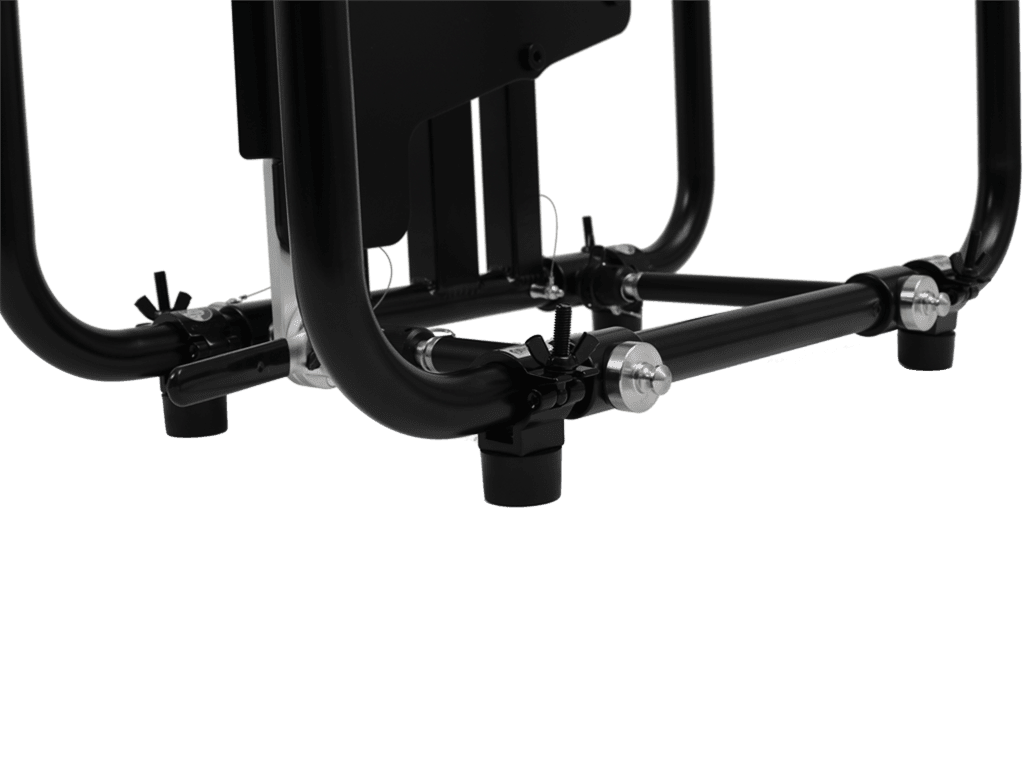

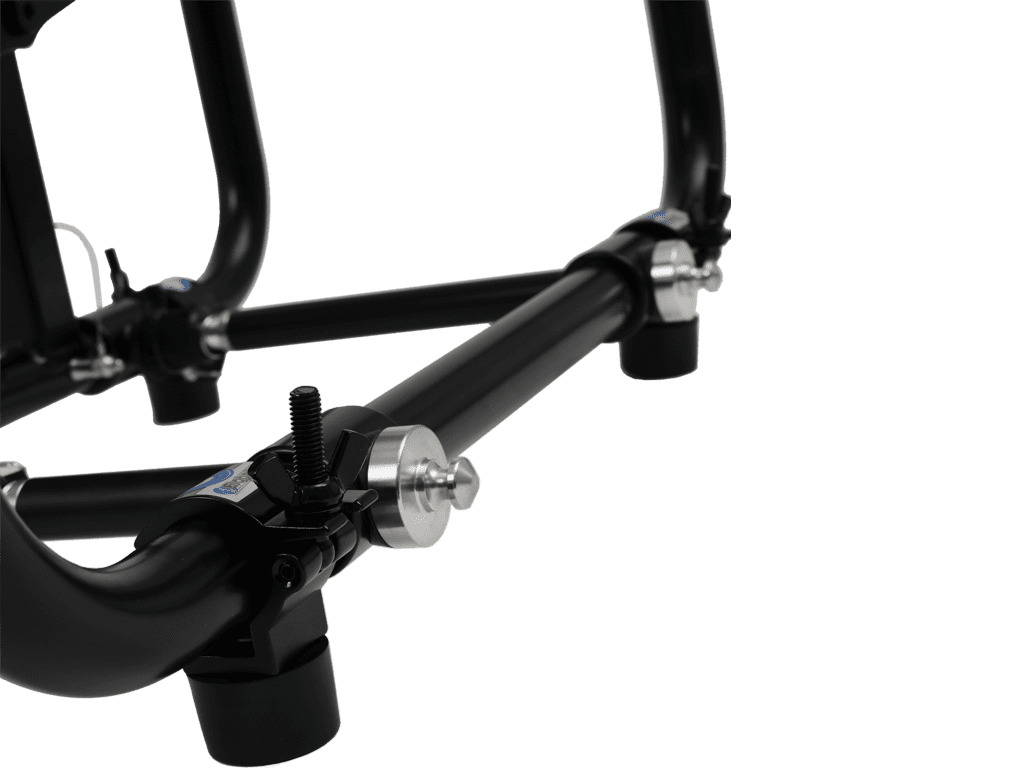

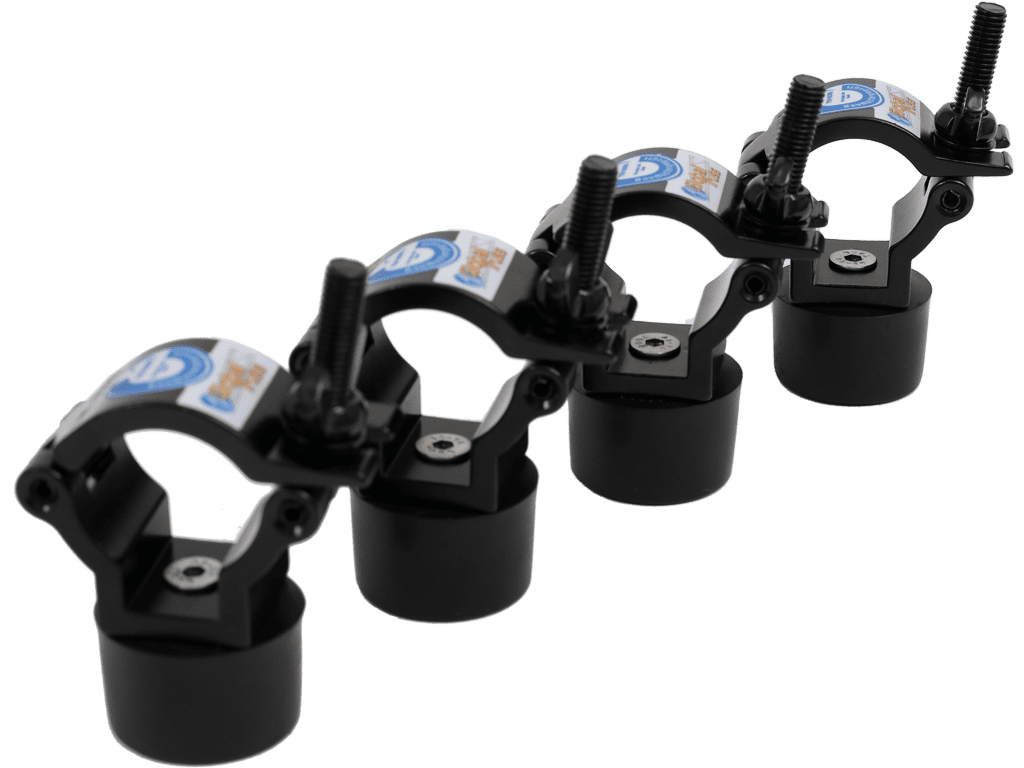

Clamp for table installation
Clamp for table installation
With a clamp set of the FRAME-PF-UNI-CLP PT Series you can easily put your projector in the portrait position while it’s standing on a table. Therefore, the four clamps that a set contains have to be mounted on the projector frame.
Specifications
Visual Details
Safety Cable Kit
Safety Cable Kit
In the event industry, it is often indispensable to use the correct secondary safety device for DGUV17/18-compliant use with loads above people. For heavy objects such as projectors, this can only be achieved with very thick steel cables.
The EVO-LINK Safety Cable Kit is verified by static calculations for a maximum load of 200 kg and ideal in combination with the EVO-LINK-200 series. The core of the lifting straps is made of multi-coiled steel cables and thus remains relatively flexible and easy to handle. The maximum drop height must be less than 10cm and it is recommended to use two load straps to minimize load swing. The EVO-LINK Safety Cable Kit consists of two 2m lifting straps and two shackles.
Please contact us if you have any further questions.
Visual Details
Downloads
Drawings
